Attaching Images

Attaching Images Direct from a Digital Camera

Open the Image Browser window from the patients clinical window using the Image Browser button.

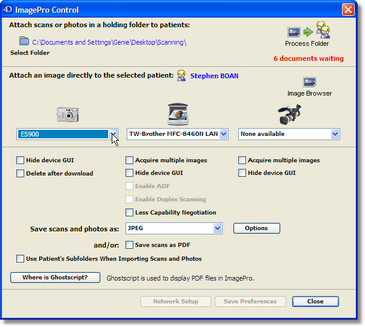

Open the ImagePro Control window using the Camera icon.

Connect your camera to your computer and turn it on. Genie should recognise your camera in the drop down menu as below. If not, you may need to install the camera driver using a CD that would have come with your camera.

Click on the Camera icon and Genie will bring up a list of photos on your Memory Stick. Highlight the images you want to attach to this patient. If you want to select multiple images, SHIFT or CTRL click on the images you require. Click OK. Genie will prompt you for a description for the image/s. For multiple images, Genie will name the images: name_1, name_2, name_3 etc.

Note: It is best to take photos in VGA or email mode to keep them at a reasonable size. The quality will still be adequate for viewing purposes, it is only if you are going to print the photo bigger than 6x4 that you need higher resolution. VGA/email will be a size setting on your camera itself.

Attaching Images from File

Images can be attached to a patient's clinical file from a number of places within Genie.

Via Image Browser

Open the Image Browser window from the patients clinical window using the Image Browser button.

Click the Blue Plus at the top left of the Image Browser window

This will open a Browse window allowing you to navigate to where the images are stored. Select the image you wish to attach and click OK.

Note: Images can only be attached one at a time.

These images will need to be named before attaching or renamed using the Rename icon once attached.

Via Appointment Book

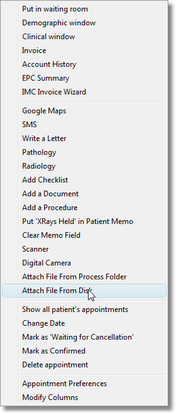

Right-clicking on a patient in the Appointment Book will provide you with the option to perform many common functions in Genie, including Attaching an Image from File or Attaching an Image from the Process Folder.

Via Patient List

Right-clicking on a patient from the Open > Patients list will provide you with a similar list to above, allowing you to Attach an Image from File or Attach an Image from the Process Folder.

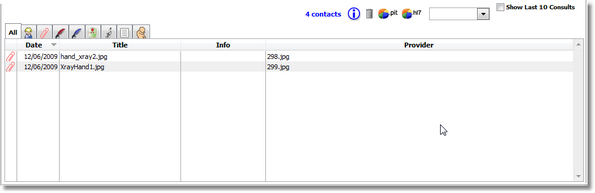

Via All Contacts List in a Patient's Clinical Record

Opening a patient's Clinical Record and right-clicking in the 'All Contacts' list will also allow provide you with the option to Attach an Image from File or Attach an Image from the Process Folder.
